Product Details

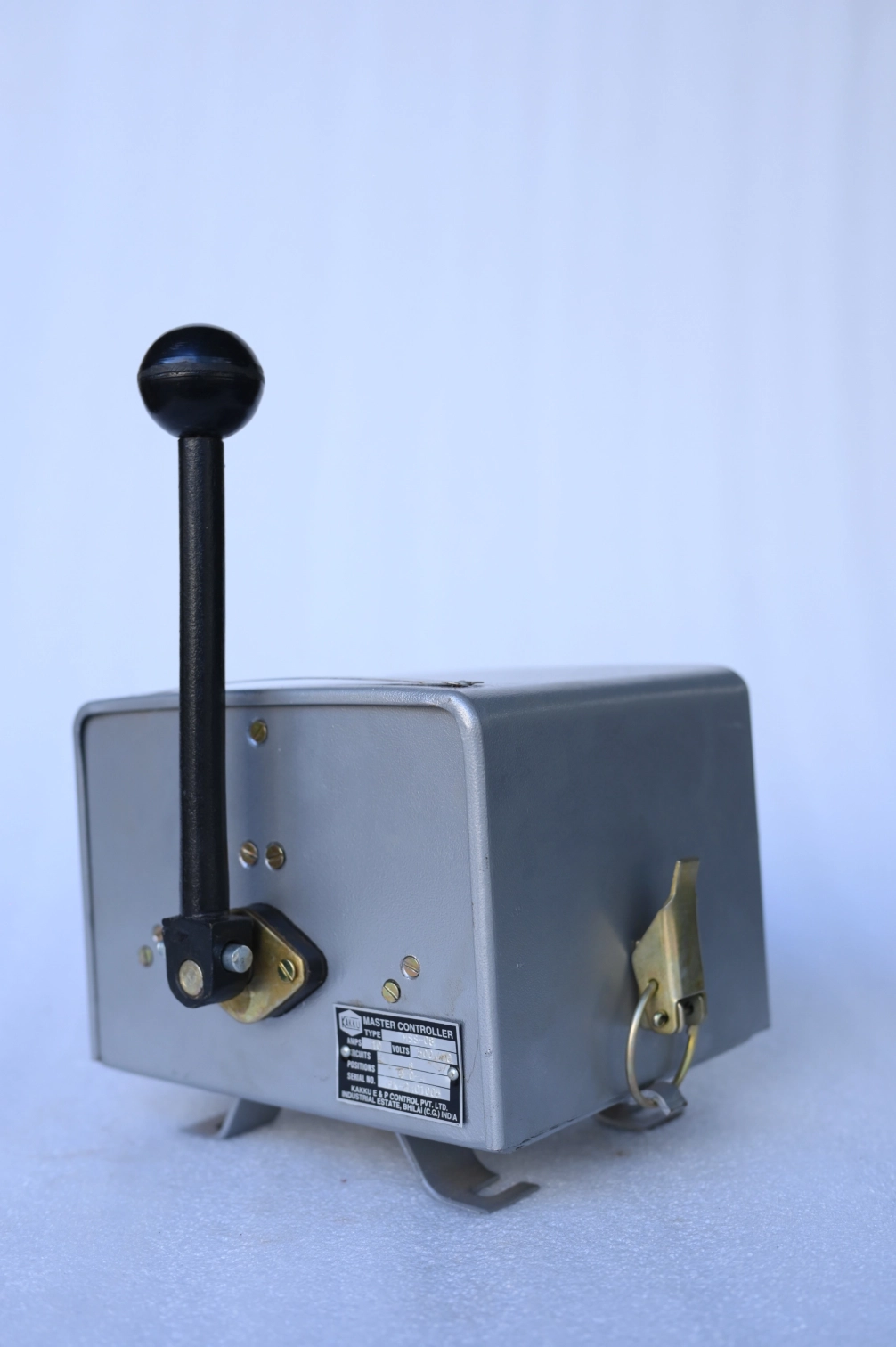

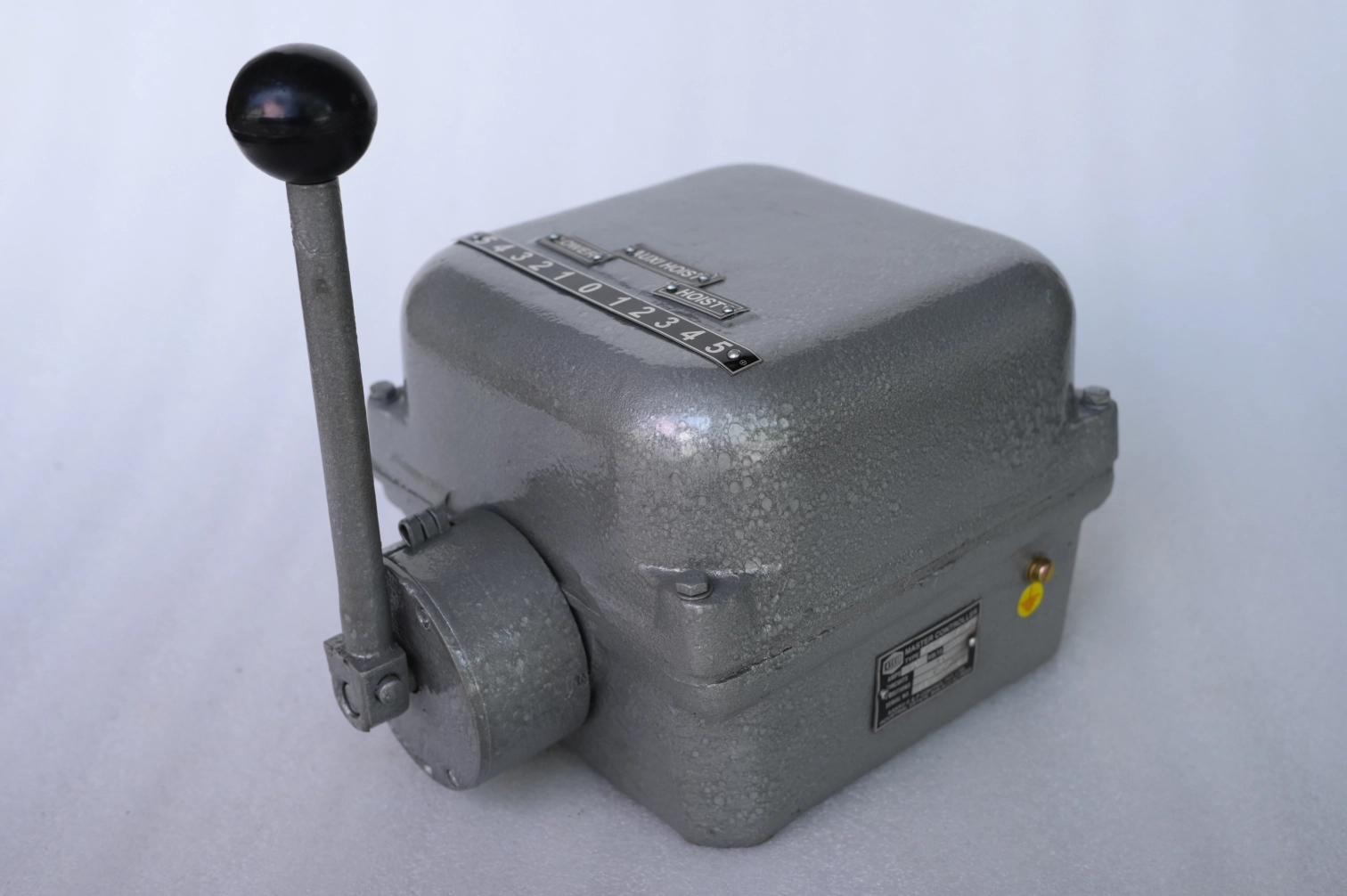

Master Controllers

Description

Proven performance in heavy duty application of steel plants other metallurgical industries mines & ports.+Suitable for EOT cranes, mills, Electric Shovels/ Excavators, Haulage, Locos and other mobile Equipments.+Master controller available for continuous current rating of 10A to 40A & Drum Controllers up to 100A.+Master Controllers suitable for breaking current at inductive load at 220V. DC in the range of 0.3 to 2A.+Available in joystick Version for Control Desk.+Number of contacts from 2 to 24 in Single Master Controllers & up to 32 (16 and 16) in Dual Controllers.+Contact Blocks,contact & Cams are or sturdy construction & proven design.+Convenient & smooth operation, without any fatigue.+Permissible switching : 800 operation hour.+Number of operation positions, 1-0-1 to 7-0-7 or as required.+Enclosure conforming to IP-41, IP-54, IP-55 or superior as per IS-2147-1962.+Conforming to relevant IPSS.
