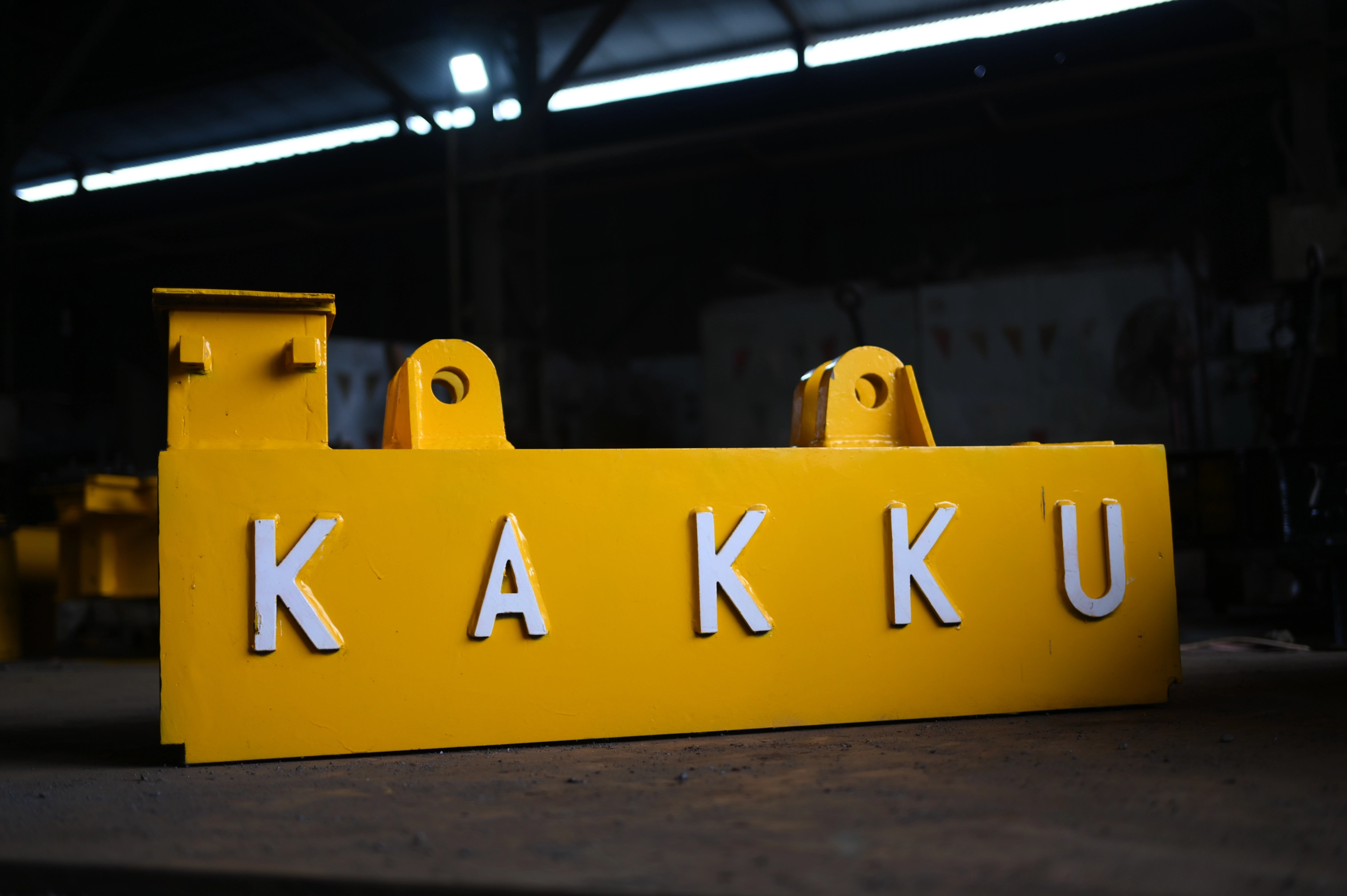

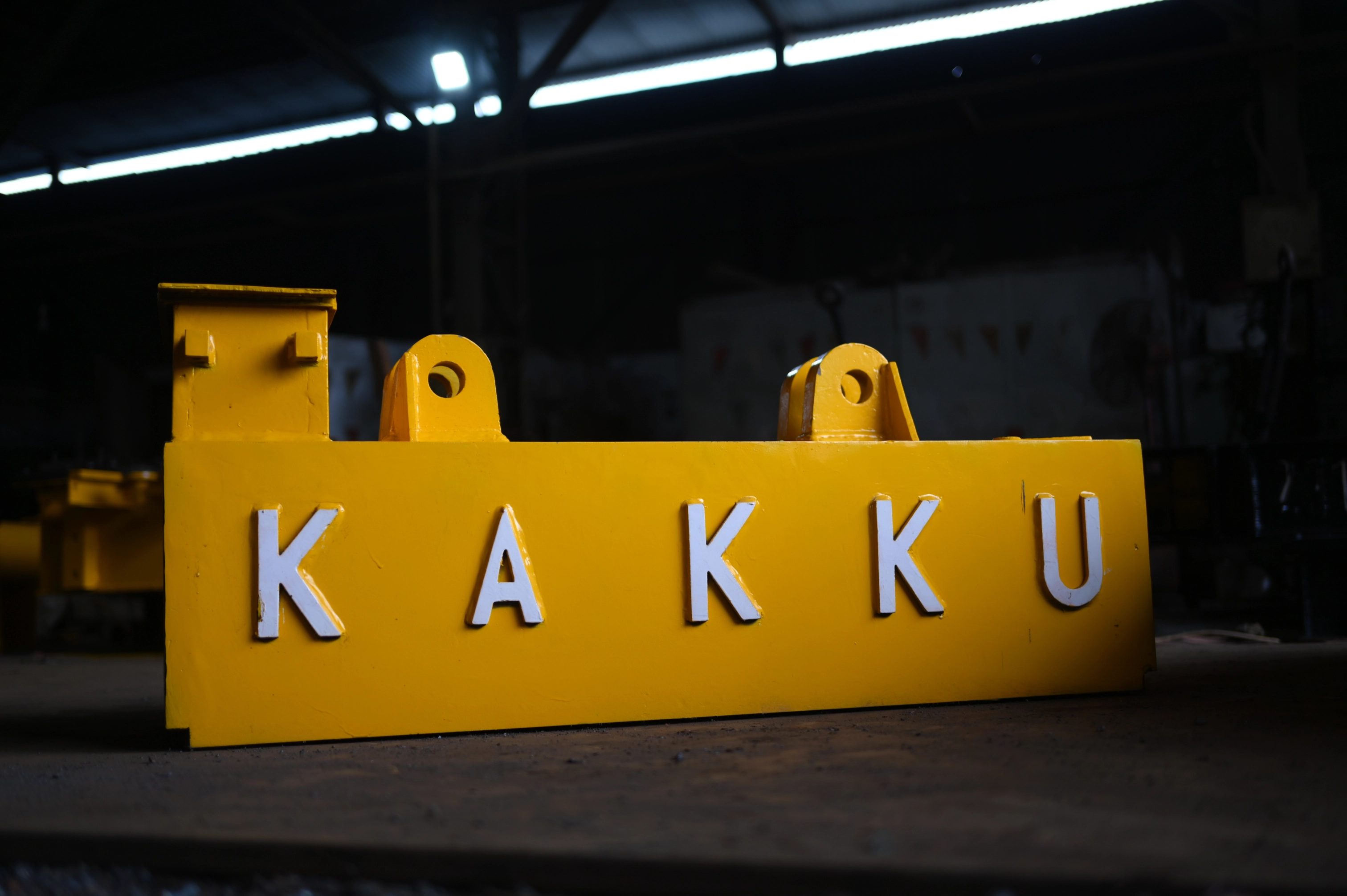

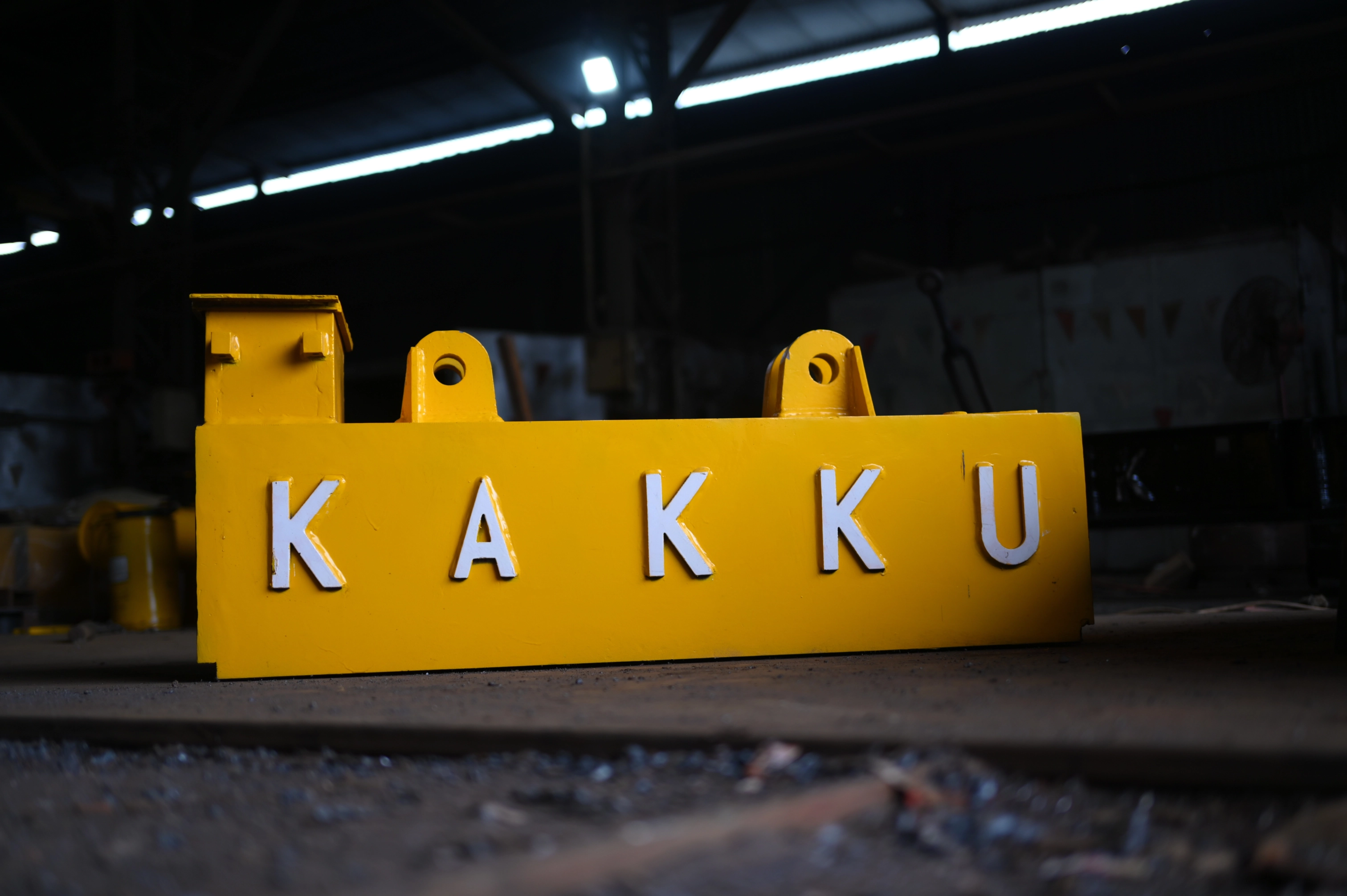

RECTANGULAR LIFTING ELECTRO MAGNET

Description

Our Rectangular Lifting Electro Magnets are engineered for efficient handling of long and bulky products in industrial environments. They offer exceptional durability, safety, and adaptability to meet varied customer requirements.

Applications:

• Ideal for lifting long products such as:
  • Blooms
  • Billets
  • Bar Bundles
  • Ingots
  • TMT Bar Bundles

Constructional Features:

• Body & Core: Fabricated from high-permeability steel for superior magnetic performance.
• Bottom Plate: Non-magnetic for focused magnetic lifting power.
• End Plates: Non-magnetic, ensuring structural integrity and optimized performance.
• Coil Material: Made with Copper or Aluminium to suit operational needs.
• Insulation: Provided with Class ‘H’ or Class ‘C’ insulation as per customer requirements, ensuring durability under high temperatures.

Safety & Protection:

• Fitted with surge suppressors in the terminal box to protect against voltage surges caused by accidental snapping of supply cables or connections.

Recommended Safety Practices:

1. Maintain the supplied voltage at 220 VDC or 110 VDC as per the specification.
2. Ensure a 50% CDF (Continuous Duty Factor): Operate for 5 minutes ON and 5 minutes OFF to prevent overheating.
3. Avoid using the magnet to push raw materials into hot furnaces.
4. For enhanced safety and performance, use a control panel with a duty cycle monitor and alarm, ensuring the CDF is maintained at 50%.

With our advanced Rectangular Lifting Electro Magnets, achieve superior efficiency, safety, and reliability for your material handling operations.
