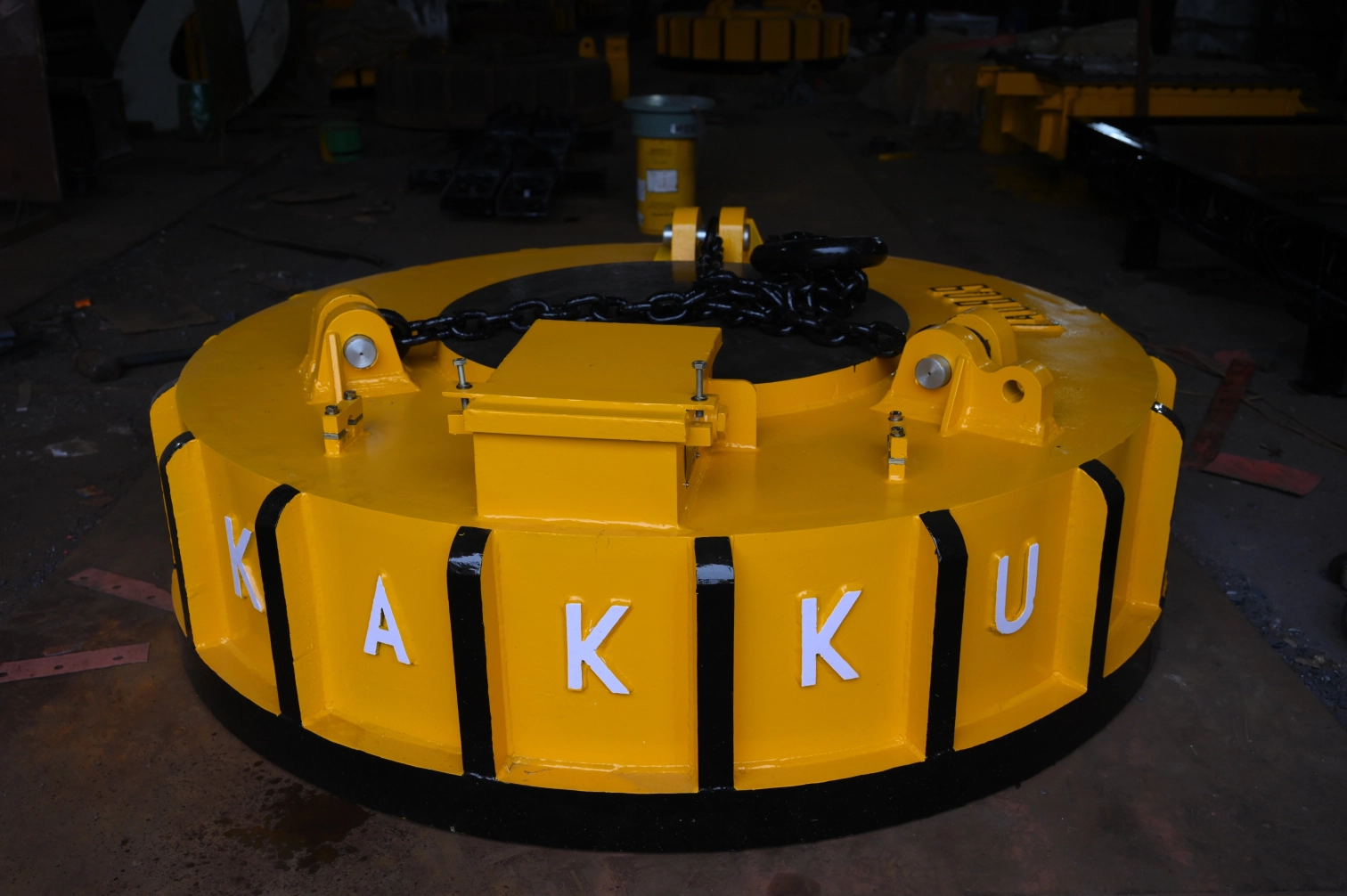

CIRCULAR LIFTING ELECTROMAGNET

Description

• Magnets with copper or aluminium coils.

• Round magnets (diameter 800 mm to 2220 mm) – for lifting Sponge iron, Pig iron, M.S scrap,

Skull cracker ball, short length plates.

• Rectangular magnets – sizes as required by the customers – for lifting Long products like Bloom, Billet,

Bar bundles, Ingots & Tmt bar bundles.

Constructional feature:

Round:

• Body: - Steel; core:-Steel Forged

• Bottom Non Magnetic Plate

• Conductor: - Copper or Aluminium

• Insulations:- Class ‘H’ or ‘C’ insulation as per customer’s requirements

Rectangular:

• Body & Centre Pole( core ) : - High permeability steel

• Bottom Non Magnetic Plate

• End Plates Non Magnetic.

• Coil: - Copper or Aluminium

• Insulations:- Class ‘H’ or ‘C’ insulation as per customer’s requirements.

All magnets are fitted with surge suppressor in the terminal box for protection against voltage surge due to accidental snapping of magnet supply cables/connections.

SAFETY FEATURES:

• 1) Supplied voltage should be maintained to 220 VDC or 110 VDC as per specification.

• 2) CDF 50% should be maintained (5 Min OFF & 5 Min On).

• 3) Pushing of raw materials into hot furnace with the magnet should be avoided.

• 4) To maintain CDF we suggest you to buy control panel with the magnet which has duty cycle monitor and alarm so that CDF of 50% can be maintained.
