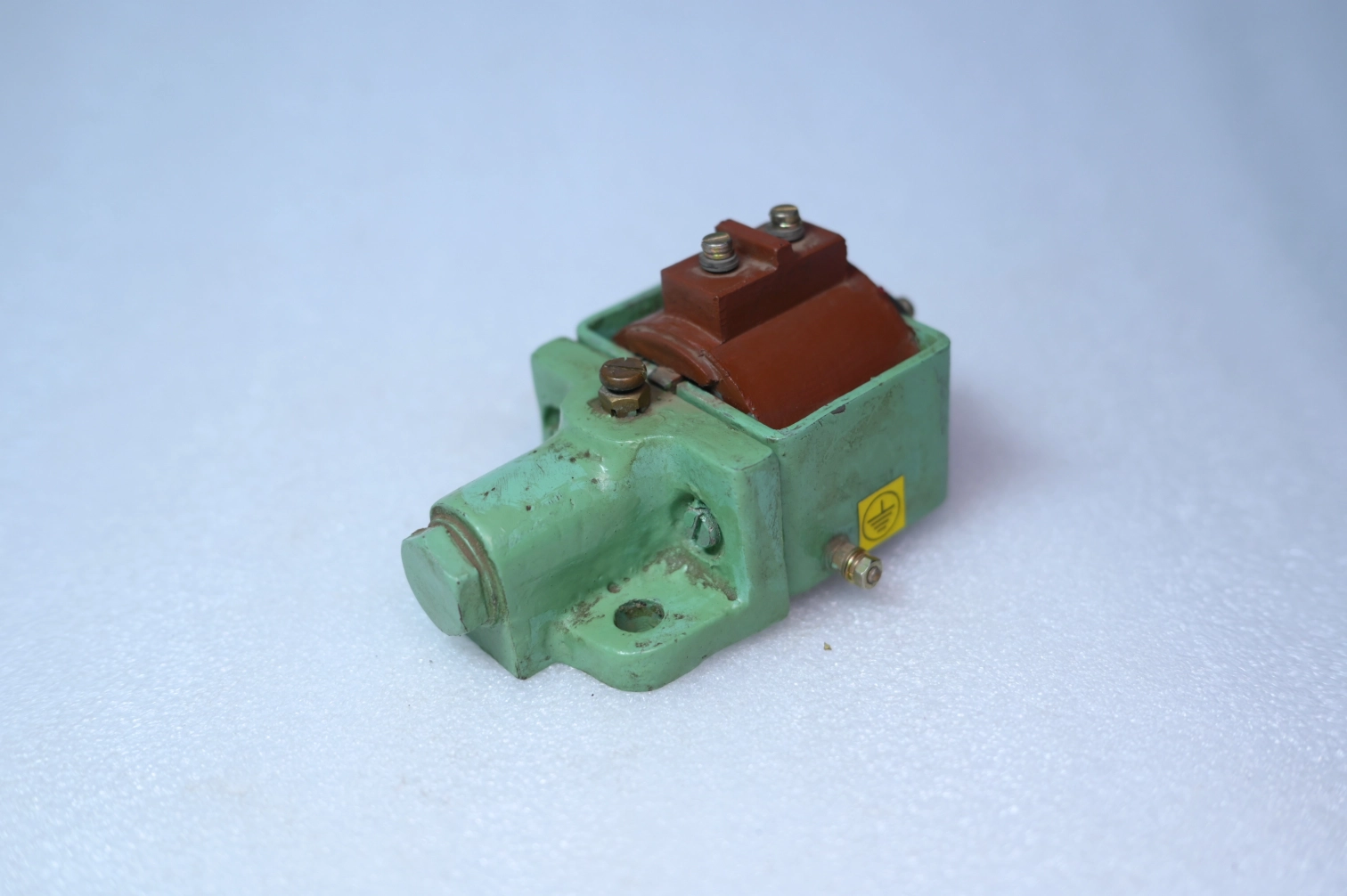

Electro-pneumatic valves are critical components used in industrial automation systems to regulate the flow of air or gas through an electrically operated mechanism. These valves are highly reliable, efficient, and designed to meet the demands of various industrial applications.
Key Features
-
Terminal Compatibility:
- Terminals suitable for conductor sizes up to 2.5mm².
-
Cable Entry:
- Equipped with one cable entry of 19mm conduit for easy wiring and installation.
-
Encapsulation:
- Completely encapsulated, class 'F' insulated oil for enhanced durability and performance.
-
KAKKU Type Series:
- TYPE KPV-32
- TYPE KP-34
- SERIES KPV-40D
Specifications
| Nature of Valve | TYPE KPV-32 | TYPE KP-34 | SERIES KPV-40D |
|---|---|---|---|
| Valve Type | Solenoid Valve | Solenoid Valve | Pulse Jet Valve |
| Working Pressure | Up to 6 Kg/cm² | Up to 6 Kg/cm² | 0-10 Kg/cm² |
| Coil Voltage | 50V / 110V / 220V DC | 50V / 110V / 220V DC | 24V / 110V / 220V AC (50Hz) or 24V / 110V DC |
| Air Inlet Cross-Section | 8mm² | 8mm² | 1.5" Pipe (BSP) |
| Air Exhaust Cross-Section | 14mm² | 14mm² | 1.5" Pipe (BSP) |
| De-energized Condition | Valve remains normally closed. | Valve remains normally open. | Valve remains normally closed. |
| Energized Condition | Valve Opens | Valve Closes | Valve Opens |
Advantages
-
High Performance:
- Operates efficiently under varying pressures and voltages.
-
Durability:
- Encapsulated design ensures resistance to wear and tear in industrial environments.
-
Versatility:
- Suitable for a wide range of applications, including solenoid and pulse jet operations.
-
Easy Installation:
- Cable entry and terminal configurations allow for quick setup and integration.
-
Reliable Operation:
- Designed to maintain con
